Pictures from building the 3cm station.

---

Return to Projects

---

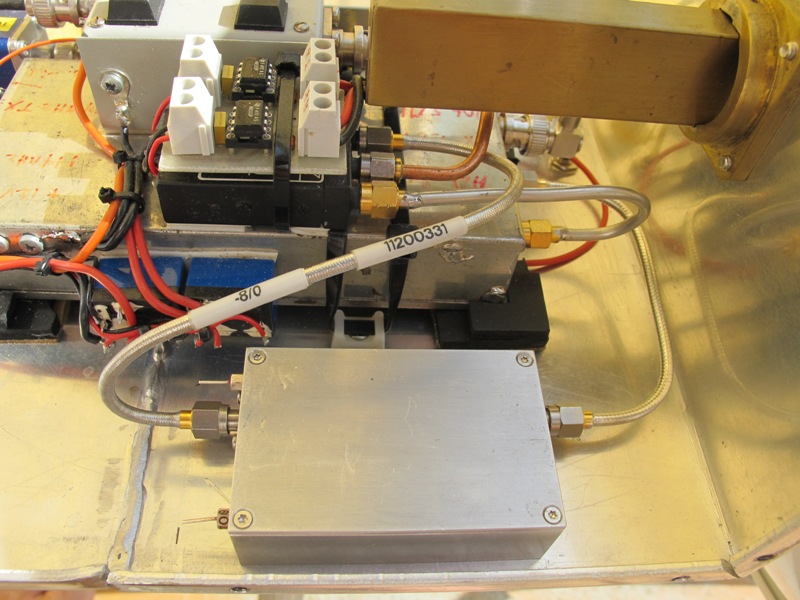

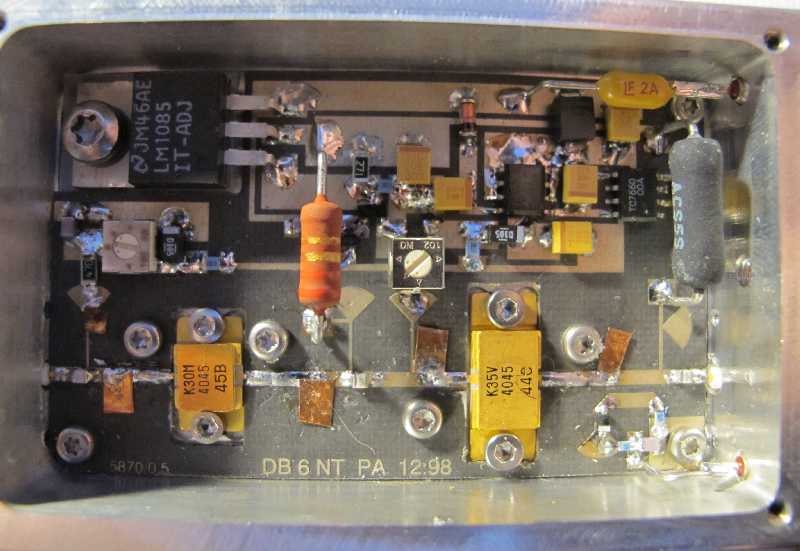

Now is the Pa mounted in the transverterbox

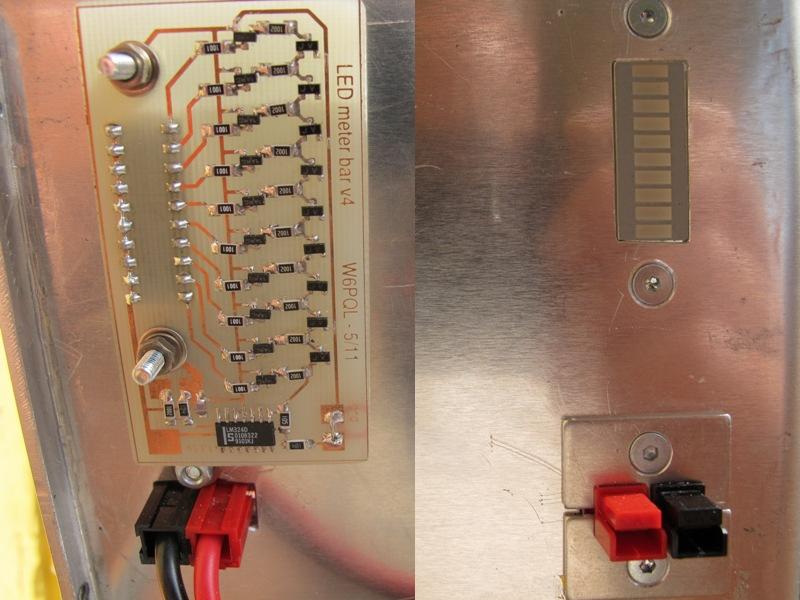

Also the ledmeter

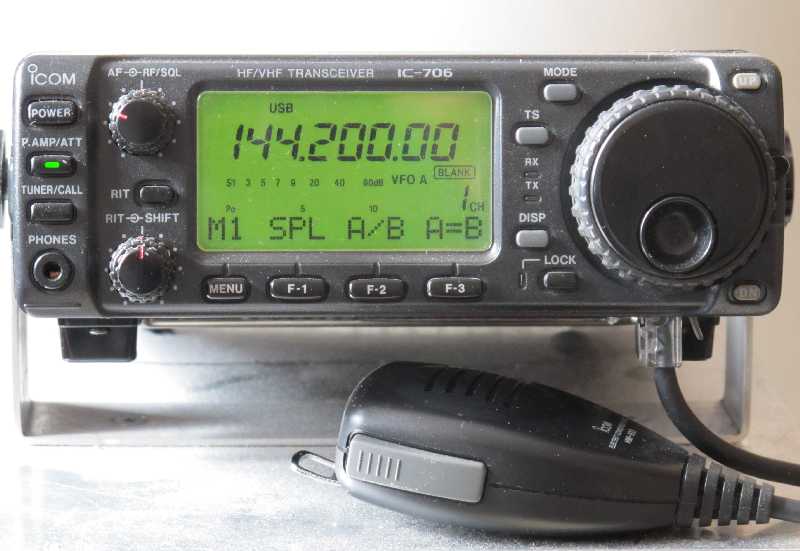

The new If-station, an Icom 706, the Yaesu went "bananas".


More power into the dish, about 4W.

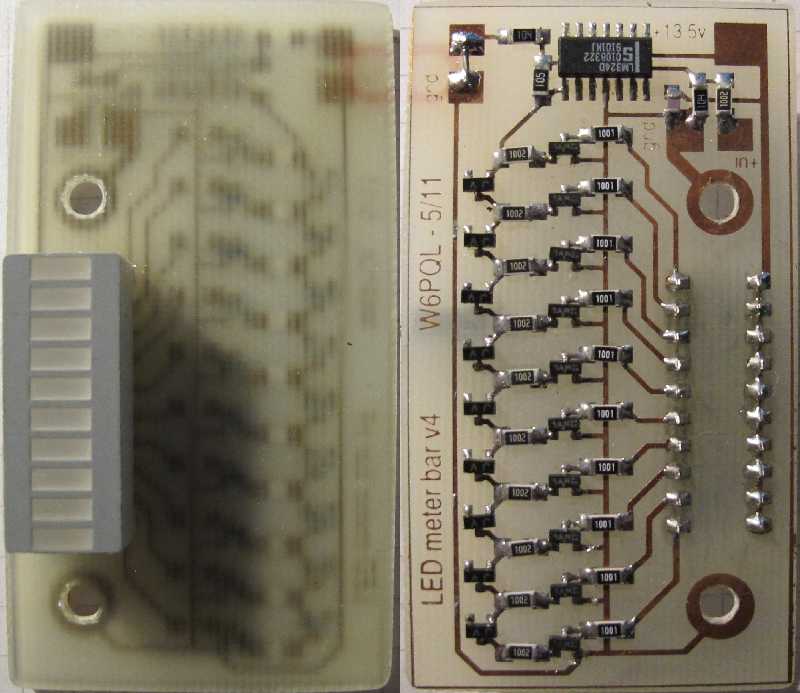

The new Pa has an connector to monitoring output power, so I build this one according to W6PQL.


The QSL card


First QSO on 10GHz, with SK0EN (op Per, SM0DFP) dist 220km and 59 signals, with 200mW output from the x-verter.
My loc is JP70KG and the alt is 415m.

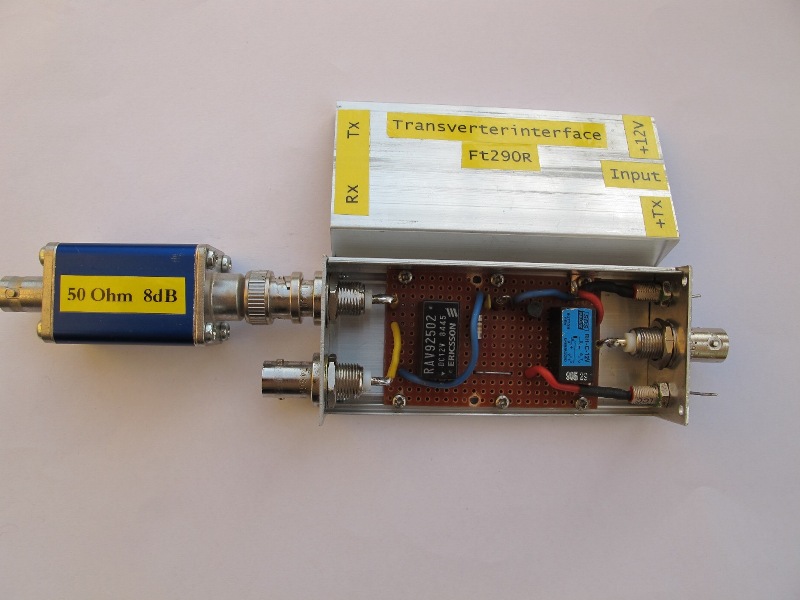

Manufacture of interface and attenuator for the If-station.


A small portable attempt, no rx/tx switching therefore only rx,

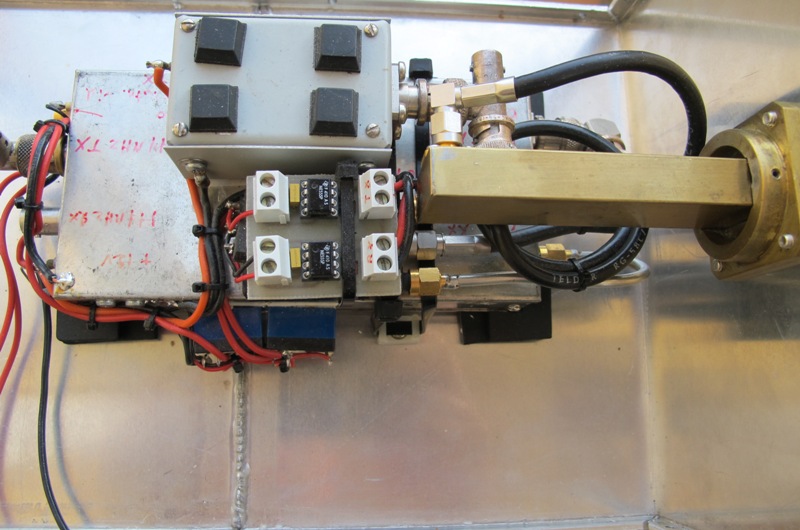

The transverter mounted in the box.

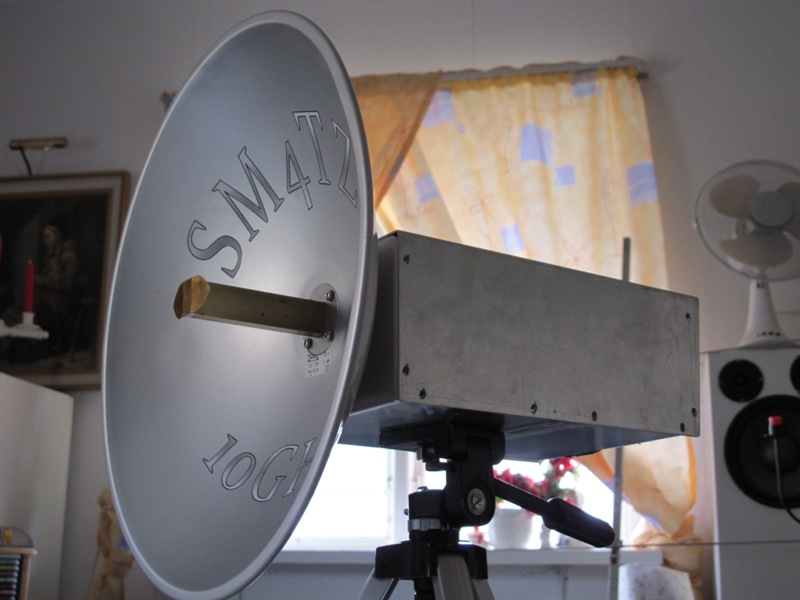

Parabolic with transverterbox attached.

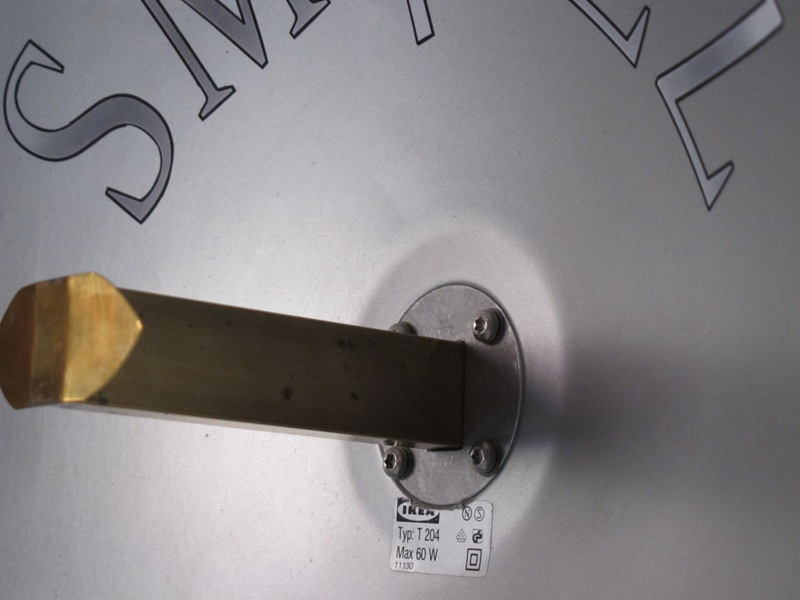

Feeder in close-up.

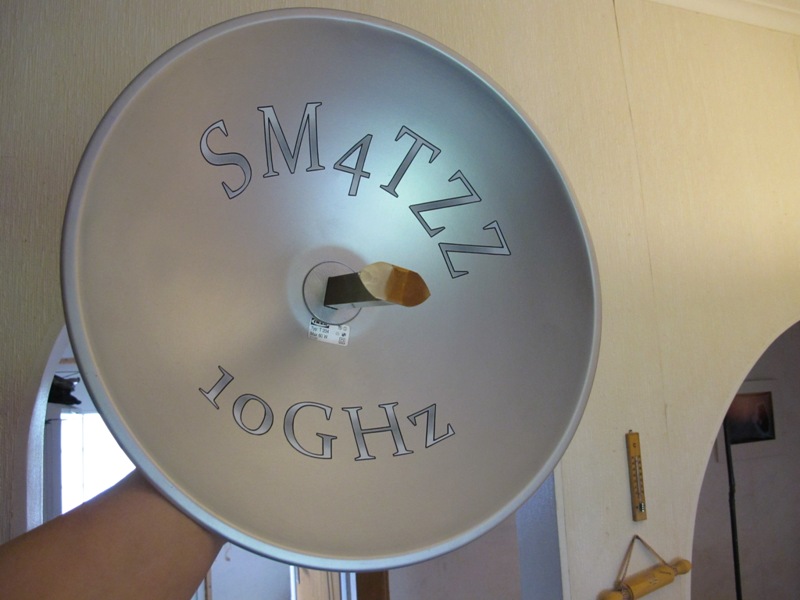

The parabolic by IKEA, with feder.


More to come!
