23cm projects

Last updated: 2018 11 29


Pictures from building the new 23cm station.
I intend to use a Kenwood TS-711 as if-station.
The Pa and controlboard is supplied from W6PQL, Jim,
and the x-verter and drivingstage from SM4DHN, Lars-Bertil.


Return to Projects

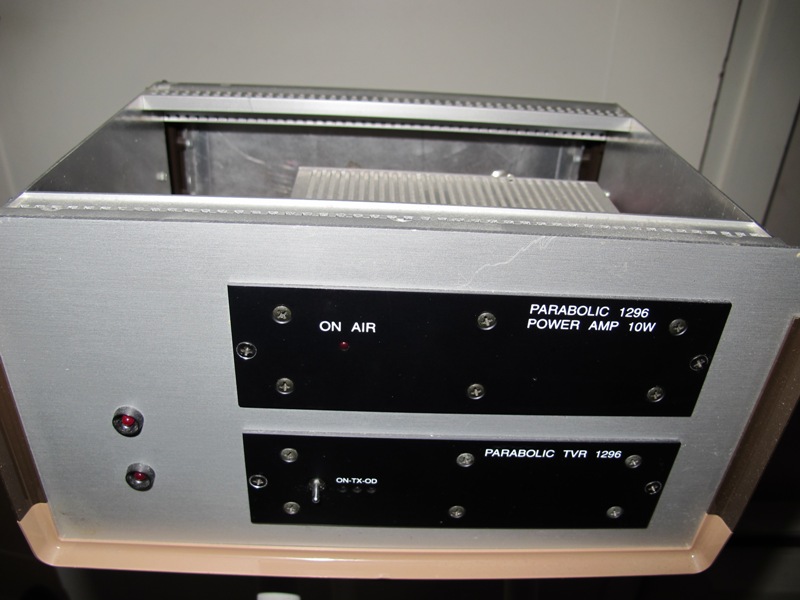

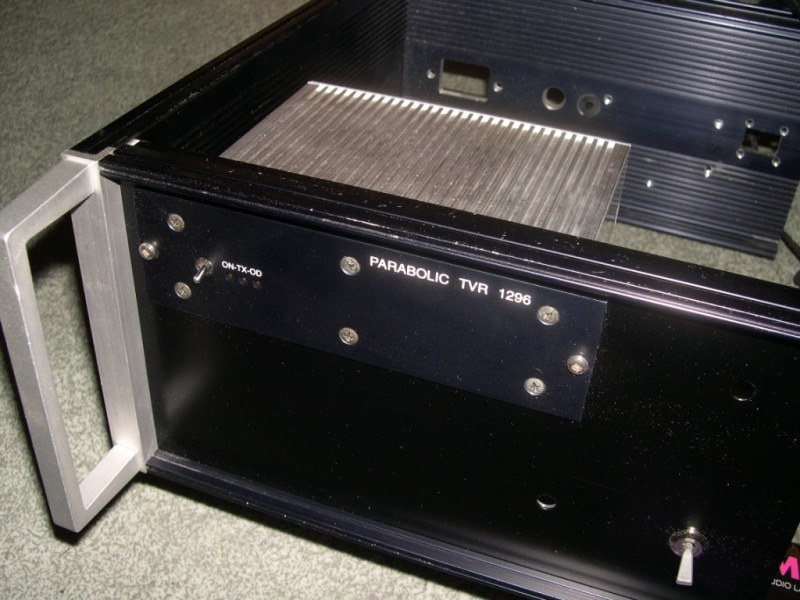

The transverter in itīs enclosure.

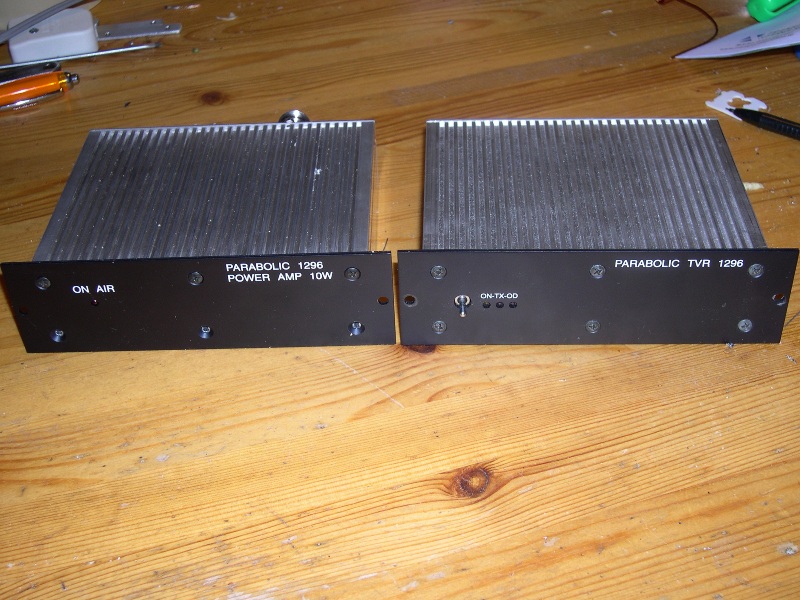

New updated version of the X-verter and 10 watt Pa.

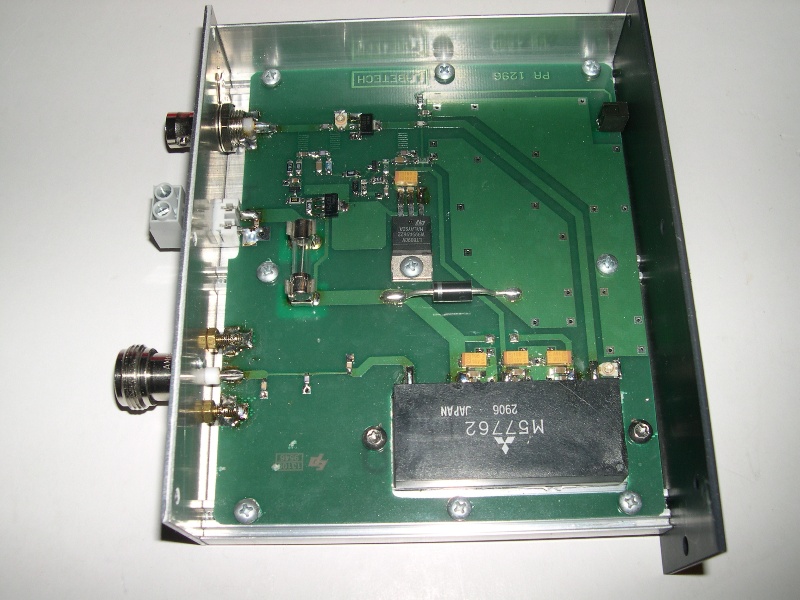

Inside the new 10 watt Pa-box.

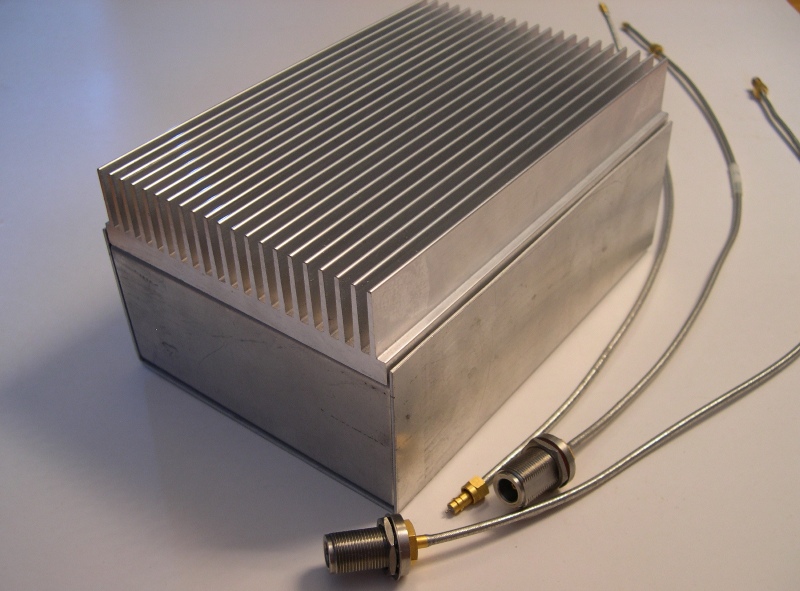

The Pa-box whit connectors


The Pa-box is begin to take shape

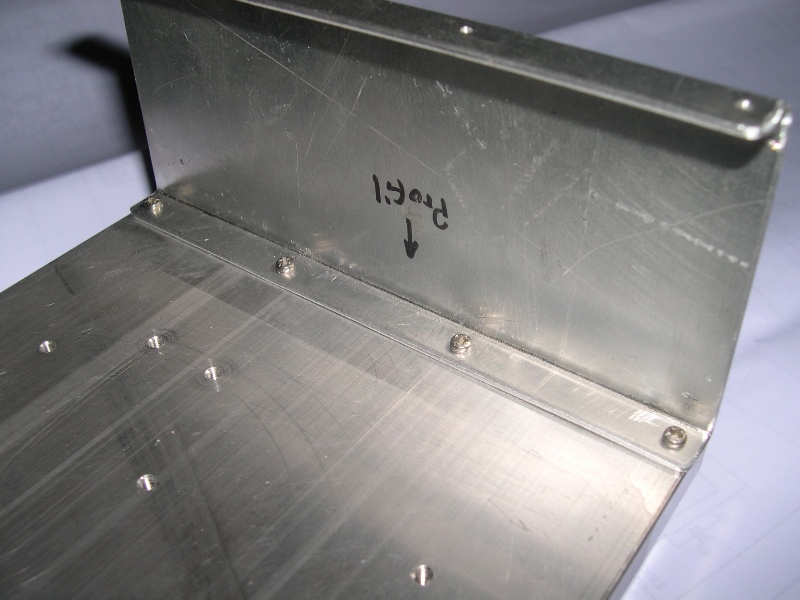

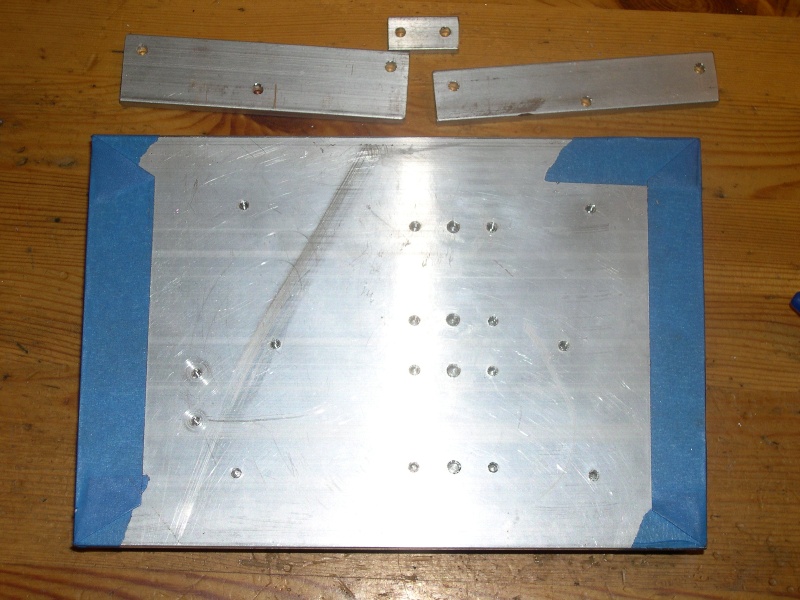

Drilled and taped

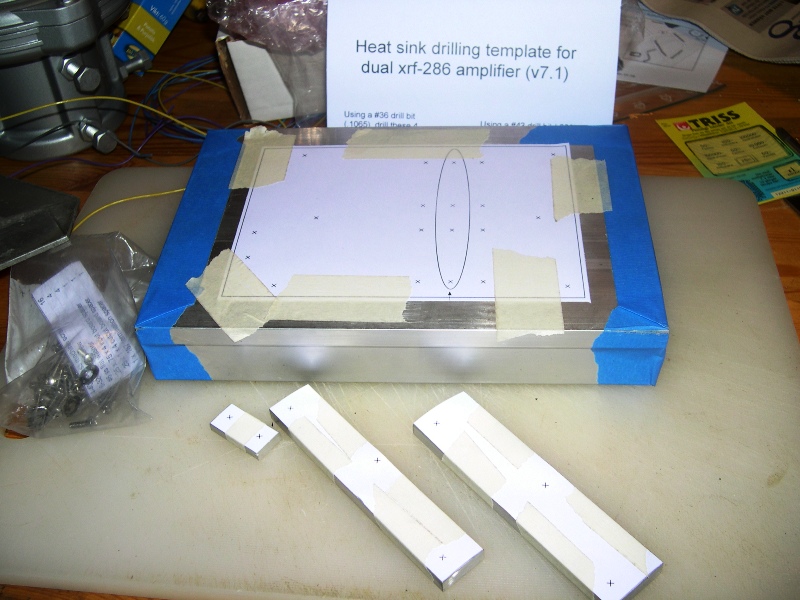

Prepared for drilling.

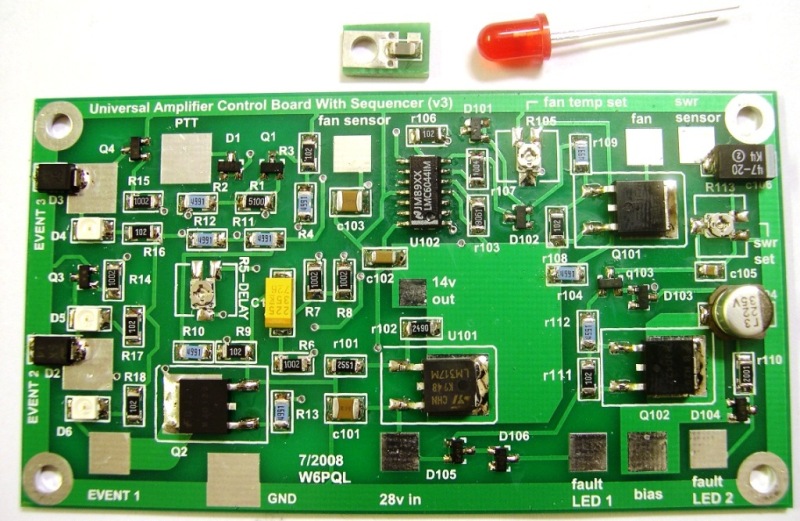

Pa-control board completed

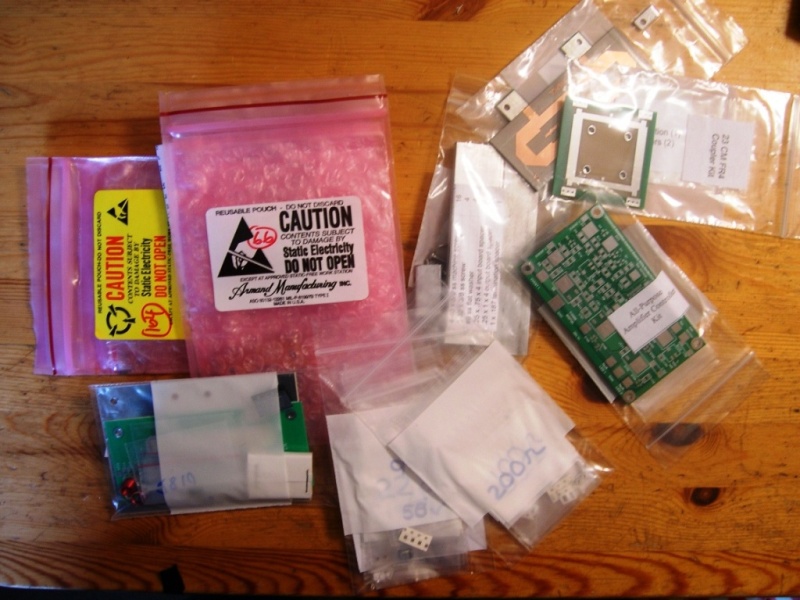

Pa-kit (10 to 150W)


Driver stage (100mW to 10W)


X-verter (144 to 1296 MHz)

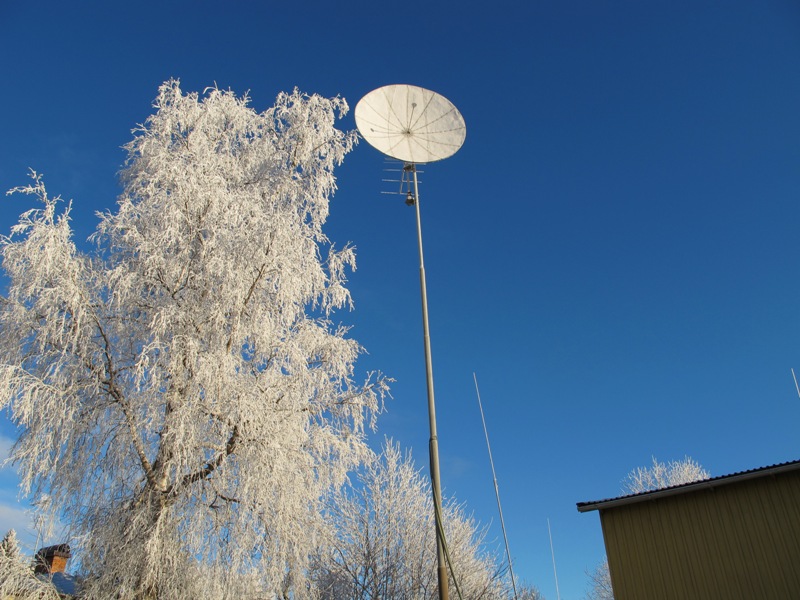

The "tower" with the 8,3 feet 23cm-parabola, D&B SM4DHN.


More to come!
