13cm projects (12,5cm ?)

Last updated: 2024 07 19

Pictures from building the 2400 MHz (2320MHz) station.

---

Return to Projects

---

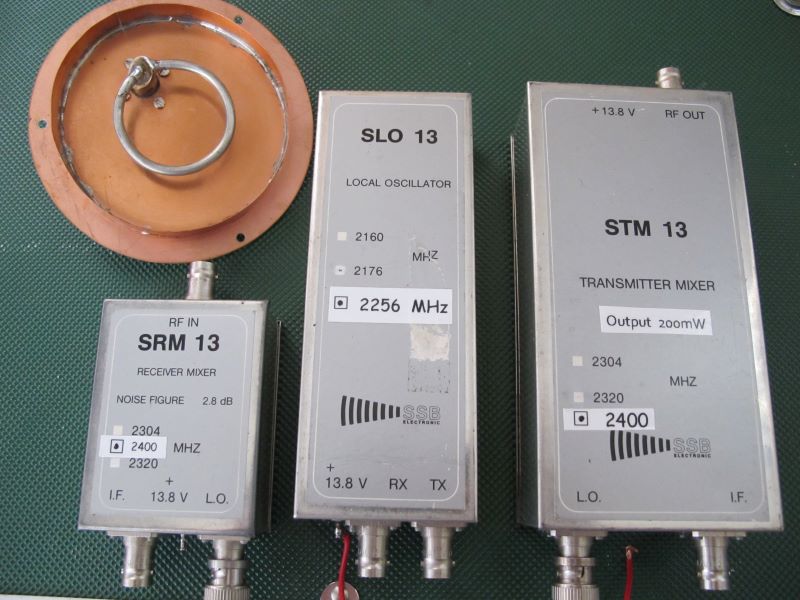

The transverter is now retuned to 2400 Mhz

Due to the auctioning of frequencies in Sweden, 2320MHz is no longer an amateur radio band.
This means that we have to move to 2400MHz.
I will try to retune my transverter.

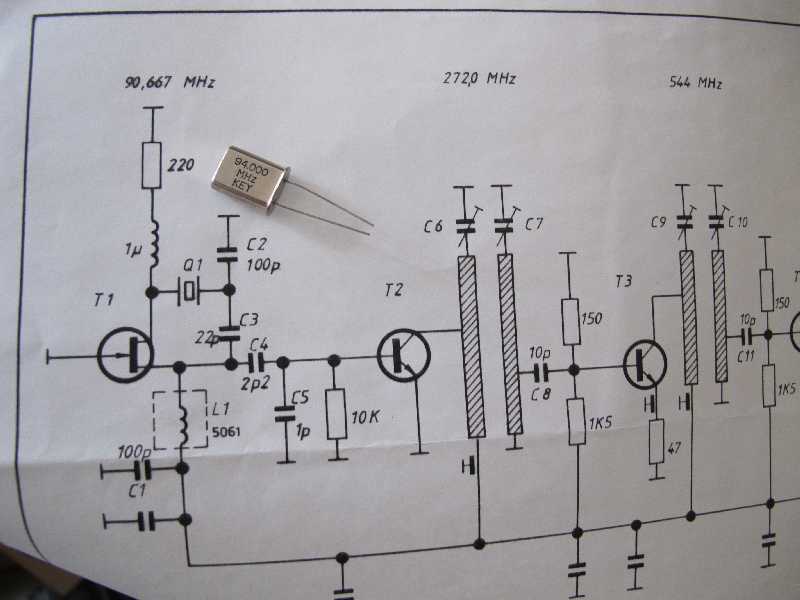

The new crystal.


Second attempt on 13cm band, now with fully functional if-interface.

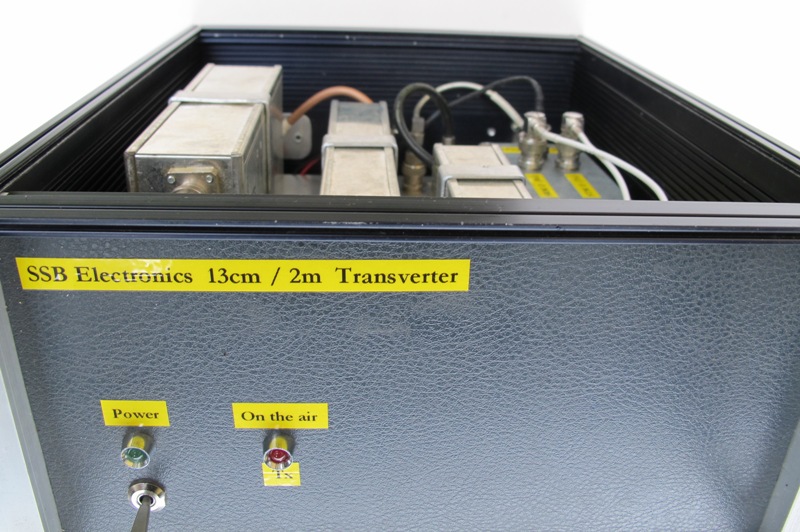

Finally done ...

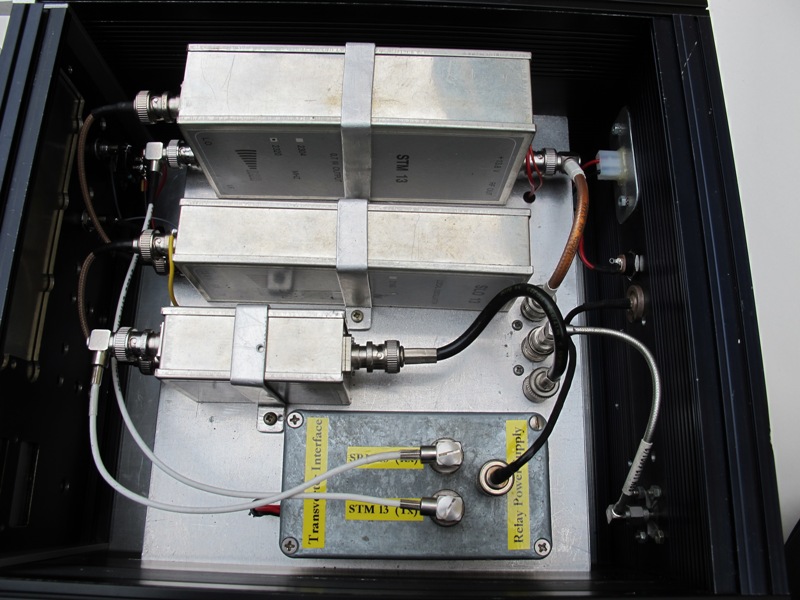

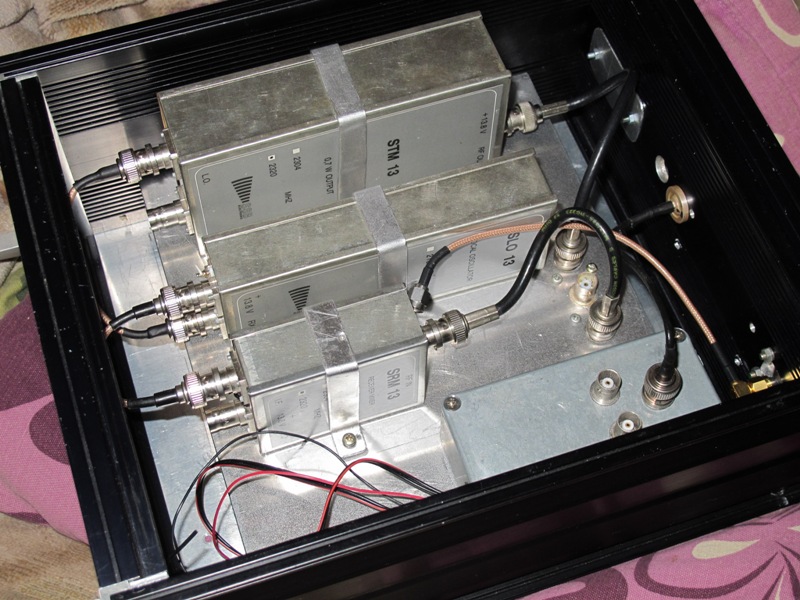

View from inside.

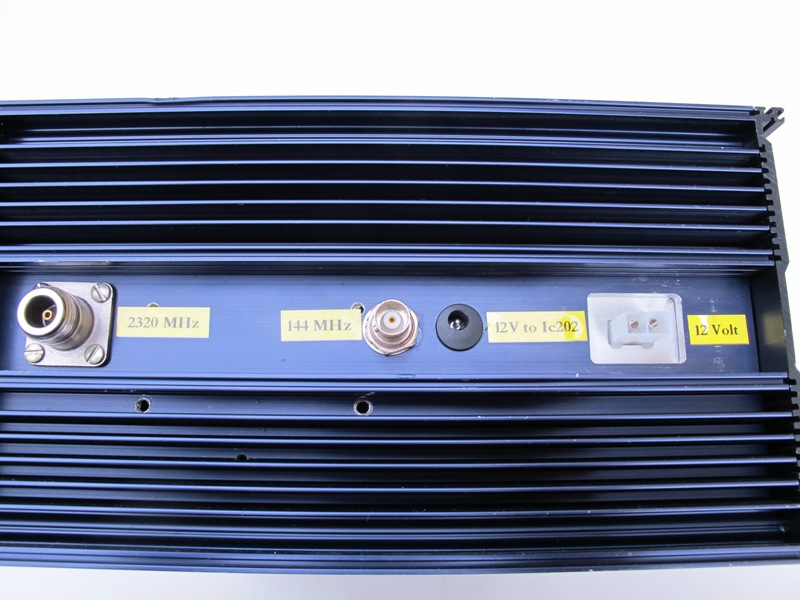

From the behind.


Begin to build the box.

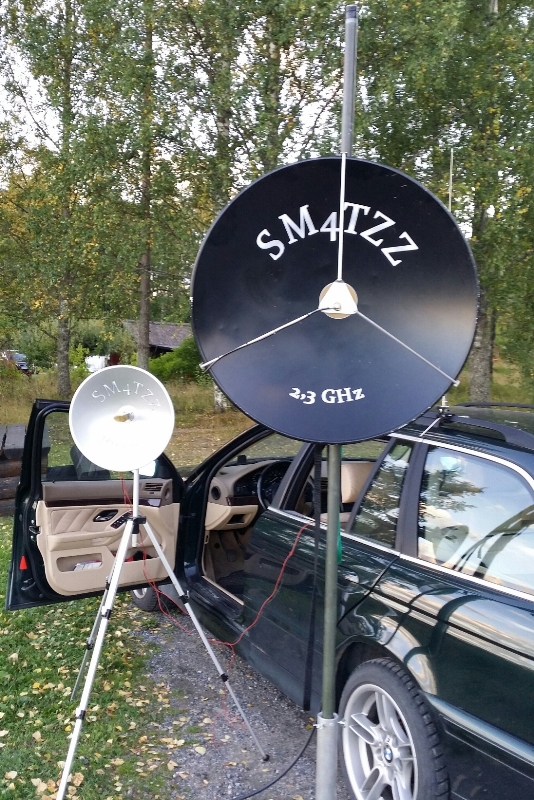

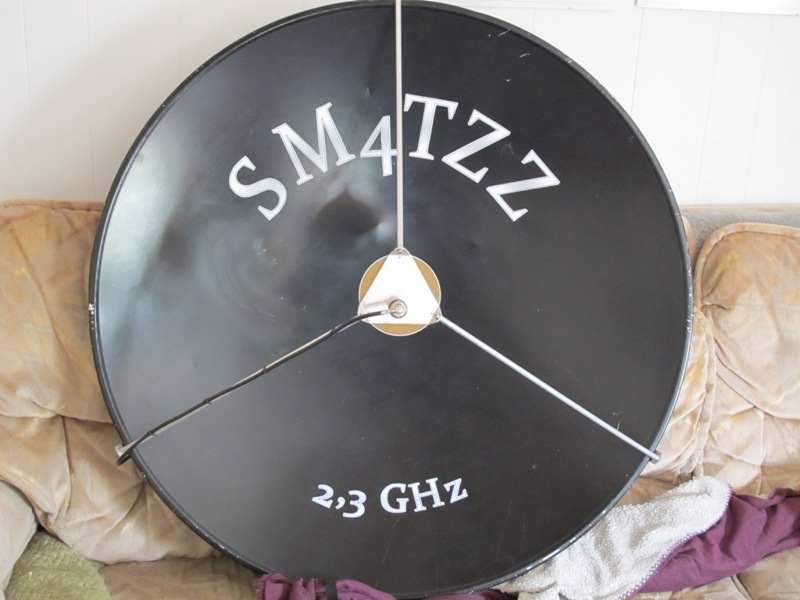

Decoration of the 35" dish.

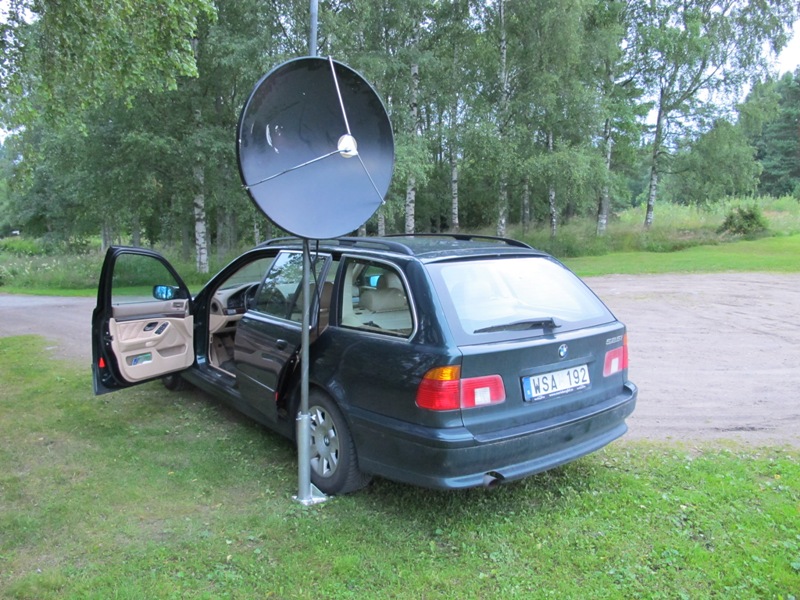

First attempt on 13cm band, in square JP70MD.


The If-station, an Icom Ic-202E.

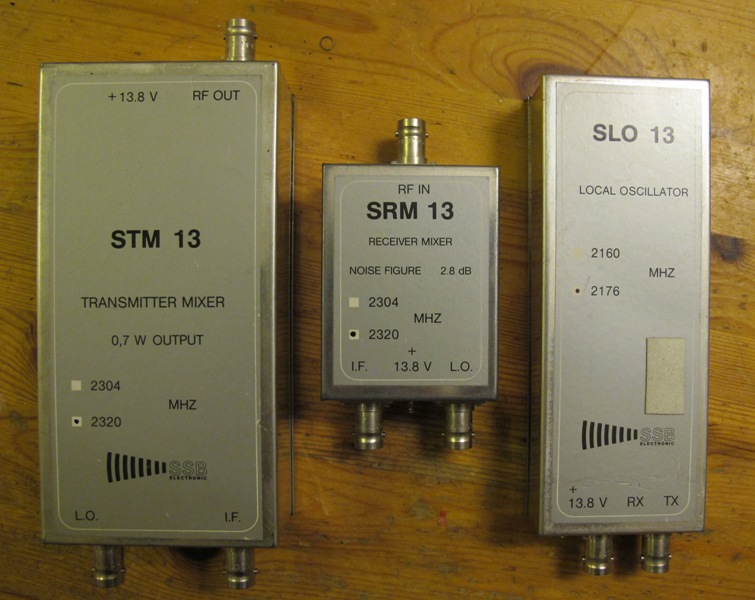

The X-verter 2m -> 13cm.

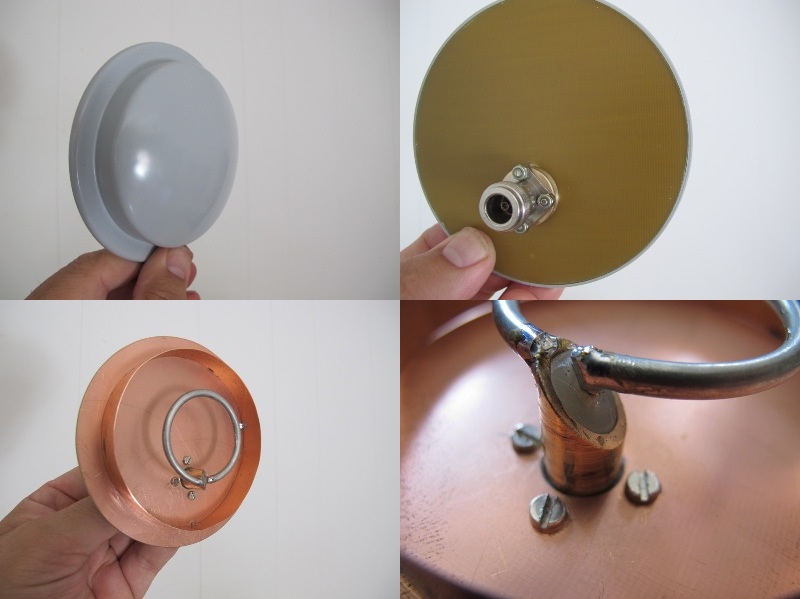

Loopfeed by DUBUS.



More to come!
